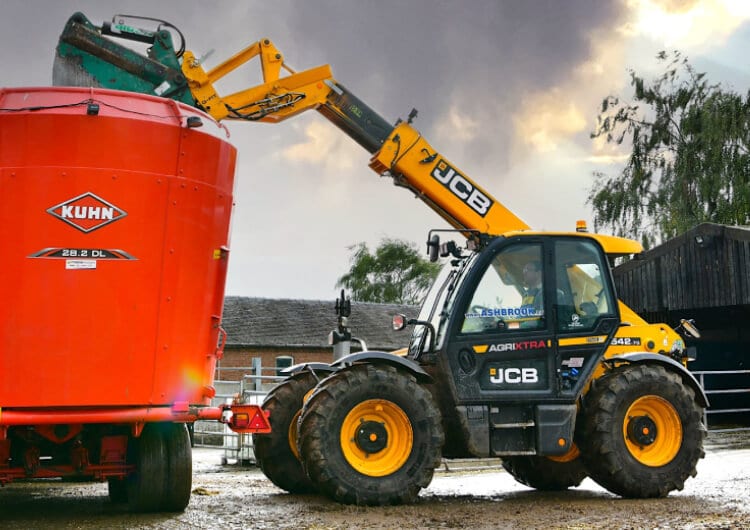

7M JCB 542-70 AGRI XTRA TELEHANDLER

7M JCB 542-70 AGRI XTRA TELEHANDLER
Weight: 8,520kg
Height: 2,490mm
Width: 2,340mm
Length: 4,990mm
Max engine power 111kW
Max lift capacity 4,200kg
Max lift height 7,010mm
Max reach 3,760mm

Hire a JCB 542-70 AGRI Xtra Telehandler

Hire a JCB 542-70 AGRI Xtra Telehandler from ASHBROOK.  This best-in-class telehandler was previously known as JCB 542-70 Agri Super.

This next range of JCB Loadalls are hailed to have their best productivity, efficiency, hydraulics, and drivetrain yet.

But what does this translate to on your farm?

Key features of the JCB 542-70 Agri Xtra telehandler

  • Bigger cab and greater visibility than previous models
  • 50% reduction in cab noise
  • Greater engine power than previous models
  • Regenerative hydraulics for quicker boom lowering and retract
  • JCB DieselMax engine
  • DualTech VT 2 in 1 transmission
  • Multiple power modes
  • Best in class fuel efficiency
  • Auto bucker control
  • Front and rear work lights
  • Grass tyres on request
  • JCB Livelink

View pdf product specification sheet for full details or ask our knowledgeable staff if you have a need for a specific function.

Reach and Boom Information

These Series III telehandlers boast a smart hydraulics package that improves cycle time and reduces fuel consumption.  Not to mention a new increased lifting performance versus earlier models.  Thus, making it one of the most efficient telehandlers available to farmers.

The regenerative hydraulics harness gravitational forces to enable the boom to lower and retract with greater speed.  This also reduces excess engine revving and contributes to better fuel economy.  Alongside this, the hydraulic auxiliary venting releases pressure from inside and outside the cab.  Thus meaning that changing an attachment has never been more straightforward.

In addition, boom-end damping improves material retention and makes for a smoother work cycle.  Whilst the auto bucket control makes it easier to meter out or fully empty material from your bucket or manure fork via a feature button on the joystick.

Farm versatility

All JCB machines come with an excellent farming pedigree, having spent many years designing vehicles for agricultural work.  Once again, this telehandler is leading the field.

In fact, JCB is the only manufacturer of agricultural products to make their drivetrain complete, thus delivering maximum performance and efficiency.  This also works seamlessly with gearbox and engine operations.

As this telehandler is an AGRI Xtra model it comes with a DualTech VT engine.  This is the world’s only 2-in-1 transmission, giving a smooth transition from hydrostatic to powershift.  Therefore, improving cycle times by up to 25% when handling and 16% when towing on the road, compared to competitor machines.  In addition, fleximode provides independent engine speed and ground speed control.

Like all vehicles in this series, the JCB 542-70 AGRI Xtra comes with the 3 steer modes (2, 4, and crab), a compact wheelbase, and large steering lock angles.  Thus, saving you valuable time on the farm, especially where space is limited.

As this telehandler is an AGRI Xtra it comes with limited-slip differential for improved performance on difficult terrain.

Working on uneven ground?  Then the hydraulically controlled sway front axle levelling system enables precision loading on uneven ground.

Well-versed in the rigours of farming life JCB has ensured that the engine pod remains clear from any unwanted debris by installing an auto-reversing fan.

The JCB 542-70 AGRI Xtra telehandler comes with pallet forks and is quickhitch enabled.  Additional attachments, such as muck grabs, grain buckets, and more are available, ask our hire team for information.

Operator Comfort

The new CommandPlus cab offers a 10% increase in airflow performance and a 66% improvement in defrost time; great news for those cold and frosty mornings.  Automatic temperature and climate control ensures that fresh or re-circulated air keeps the operator at a comfortable temperature throughout the day.

With a cab volume increase of 12%, the new Series III AGRI Loadall offers a roomy environment for the operator.  The new shaped cab ensures that the operator remains a comfortable distance from the curved front glass.  In addition, this curved front glass affords the operator superior visibility with the Command Driving Position adding to this improved view. Particularly, to the right-hand side and rear over JCB’s low boom pivot point and unique sloping bonnet design.

The simple to operate, single integrated roof and windscreen sunblind, remains tight to the cab frame so as not to intrude across the driver, providing unhindered machine operation.

Along with set and forget adjustable settings this practical cab has a new adjustable, slimline, 7″ screen with a rotary controller.  This allows for simple, clear access to operational information. There are multiple charge points and full connectivity by USB, 3.5mm audio auxiliary, and Bluetooth through the radio, with an integrated microphone to aid hands-free calling from the operator’s mobile phone.

ASHBROOK telehandlers are supplied with JCB Livelink technology.  Ensuring the best customer service for our customers.

What does JCB say about the 542-70 AGRI XTRA Telehandler?

All pictures are for illustration purposes only.  Machines may vary depending on the specification ordered.

How to hire?

Hire a JCB 542-70 AGRI Xtra telehandler by contacting our hire desks today or click ‘Get a Quote’ to receive an online quotation.
