Weight: 1,375kg
Height: 1,602mm
Width: 1,110mm
Length: 3,006mm
Max engine power 17.2kW
Max load capacity 1,000kg
Max skip capacity (heaped) 0.54m3
Max travel speed 12km/h

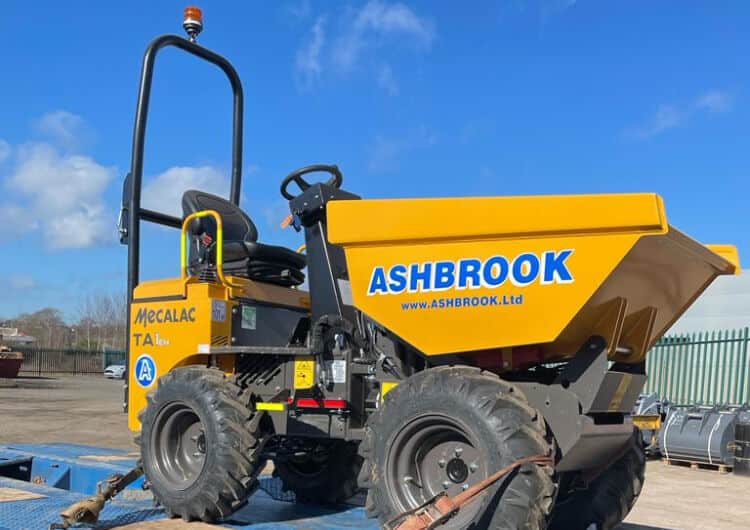

Hire a Mecalac 1t site dumper- the TA1EH

Hire a Mecalac 1t site dumper- the TA1EH.  This nimble machine will provide the power needed to move muck and rubbish from even the smallest of sites.

Key Features of the Mecalac TA1EH

  • High Tip
  • EU Stage V diesel engine
  • Amber beacon
  • Green beacon
  • Hi-vis steps and grab handles
  • Reverse alarm
  • Road registered
  • Travels at a top speed of up to 12km/h

View the pdf product specification sheet for full details or ask our knowledgeable staff if you have a need for a specific function.

On-site capabilities

Specifically designed for use on housing developments and landscaping, this small but perfectly formed 1t site dumper will be just the machine you need to clear those tight spaces.  The TA1EH boasts a best-in-class turning circle and folding ROPS structure.

In addition to excellent maneuverability, the TA1EH has an elevating skip, meaning that loads can be placed directly into a skip or truck.  Thus eliminating the need for double handling of material.

This 1t site dumper is supplied with an automotive-style hydrostatic transmission with a directional control level and throttle pedal.  It’s easy to operate and all that needs to be mastered on this ‘jump-on and go’ machine.

Automatic braking has been added as an additional safety feature.  This is activated when the throttle pedal is released.  A handy feature to support on-site safety.


This dumper is powered by a Kubota D1005 17.2kw (23hp) EU Stage V compliant diesel engine.  Thus ensuring that the machine meets with the highest global emission standards.

Operator comfort

User-friendly controls make this 1t site dumper an easy machine for all operators to use.  The foldable ROPS bars provide an additional level of safety for the operator, whilst they go about their daily tasks.

What does Mecelac say about the TA1EH site dumper?

All pictures are for illustration purposes only.  Hence, machines may vary depending on the specification ordered.

How to hire?

Hire a Mecalac 1t site dumper by contacting our hire desks today or click the ‘Get a Quote’ button to receive an online quotation.

Not quite what you’re after?  We also have 2t hi-tip swivel dumpers available.
