Plant Hire


Weight: 7,520kg
Height: 2,510mm
Width: 2,340mm
Length: 4,640mm
Max engine power 112kW
Max lift capacity 3,800kg
Max lift height 6,000m
Max reach 3,340mm

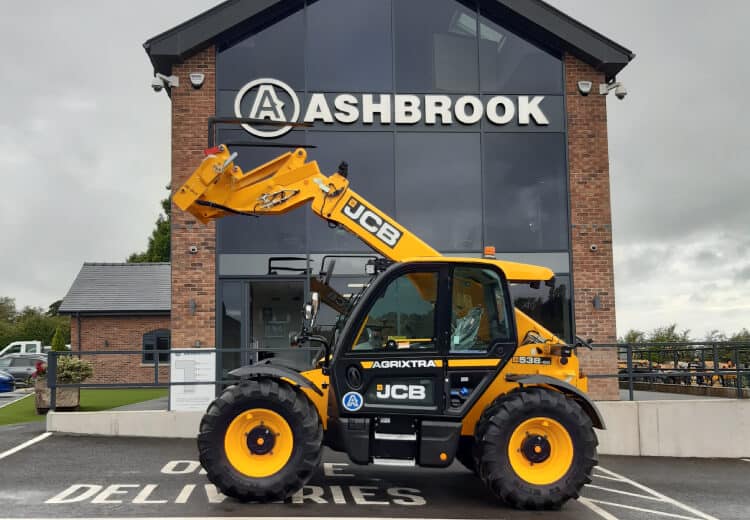

Hire a JCB 538-60 Agri Xtra telehandler

Hire a JCB 538-60 Agri Xtra telehandler. Farm in comfort with peak performance.

Key features of the JCB 538-60 Agri Xtra telehandler

  • 4.8 litre, JCB Ecomax engine
  • EU Stage 5 emission standards
  • 6 Speed Autoshift, 40kph
  • 3 steer modes with auto 4-wheel alignment
  • CommandPlus cab
  • Air conditioning
  • 360-degree LED work lights
  • Air suspension sheet with seat-mounted joystick
  • JCB Q-fit headstock with hydraulic pin
  • JCB LiveLink

View pdf product specification sheet for full details or ask our knowledgeable staff if you have a need for a specific function.

Reach and boom information

The JCB 538-60 has a 3,800 kg max payload, a 6m max lift height and a maximum forward reach of 3.34m.

The most efficient pushing, extending and lifting is ensured; market-leading JCB hydraulics see to this. In addition, JCB’s auto bucket control patented technology makes it easier to meter out or fully empty material from your bucket or manure fork via a feature button on the joystick. Material is ejected quickly and in a controlled way.

Farm versatility

All JCB machines have an excellent farming pedigree, having operated in the nation’s fields for over 75 years. Once again, this telehandler is leading the way.

In fact, JCB is the only manufacturer of agricultural products to make their drivetrain complete, thus delivering maximum performance and efficiency. This also works seamlessly with gearbox and engine operations.

Like all vehicles in this series, the JCB 538-60 Agri Xtra comes with the 3 steer modes (2, 4, and crab), a compact wheelbase, and large steering lock angles. Thus, saving you valuable time on the farm, especially where space is limited.

Are you working on uneven ground? Then the hydraulically controlled sway front axle levelling system enables precision loading on uneven ground.  Additionally, as this telehandler is an Agri Xtra it comes with a limited-slip differential for improved performance on difficult terrain.

Well-versed in the rigours of farming life JCB has ensured that the engine pod remains clear from any unwanted debris by installing an auto-reversing fan.

The JCB 538-60 Agri Xtra telehandler comes with pallet forks and is quickhitch enabled. Additional attachments, such as muck grabs, grain buckets, and more are available, ask our hire team for information.

Operator Comfort

A 66% improvement in defrost time and a 10% increase in airflow performance are just two of the reasons that the new CommandPlus cab is market-leading and incredibly comfortable. In addition, automatic temperature and climate control ensure that fresh or re-circulated air keeps the operator at a comfortable temperature throughout the day.

The new Series III Agri Loadall has a spacious environment in which to work, as the cab size is 12% bigger than the previous generation. The curved front glass gives the operator superior visibility and the CommandPlus driving position enhances this improved view. Particularly, to the right-hand side and rear over JCB’s low boom pivot point and unique sloping bonnet design.

Along with set and forget adjustable settings this practical cab has a new adjustable, slimline, 7″ screen with a rotary controller. This allows for simple, clear access to operational information. There are multiple charge points and full connectivity by USB, 3.5mm audio auxiliary, and Bluetooth through the radio, with an integrated microphone to aid hands-free calling from the operator’s mobile phone.

ASHBROOK telehandlers are supplied with JCB Livelink technology; ensuring the best customer service for our customers.

What does JCB say about the 538-60 Agri Xtra Telehandler?

All pictures are for illustration purposes only. Machines may vary depending on the specification ordered.

How to hire?

Hire a JCB 538-60 Agri Xtra telehandler by contacting our hire desks today or click ‘Get a Quote’ to receive an online quotation.
